Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | AHL |
| Certification: | CE ROHS |
| Model Number: | EV 15-31 mm |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Square Meter |
| Price: | Negotiable |
| Packaging Details: | Wooden box or Flight case |
| Delivery Time: | 20-25 day |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5,000 square meters per month |
|
Detail Information |
|||
| Pixel Configuration: | 1R1G1B | LED Type: | DIP 346 |
|---|---|---|---|
| Cabinets Position: | Vertically/Horizont | Waterproof: | IP67 |
| High Light: | led curtain wall,transparent led curtain |
||
Product Description

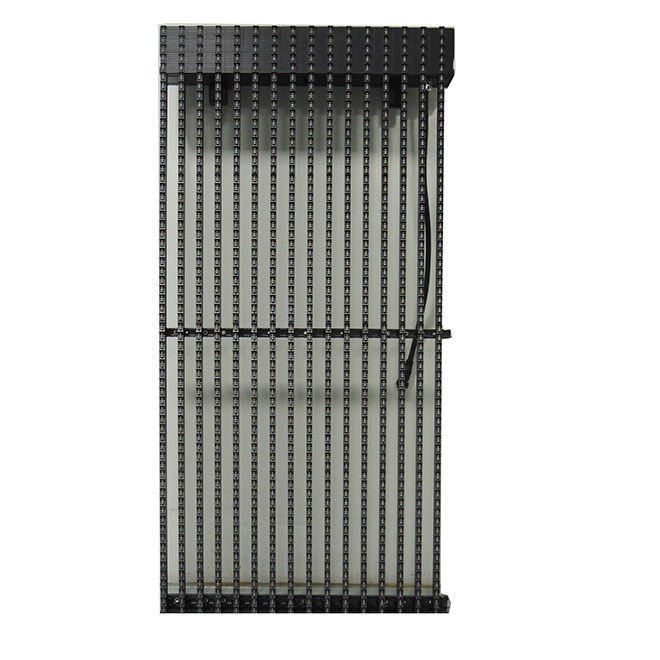

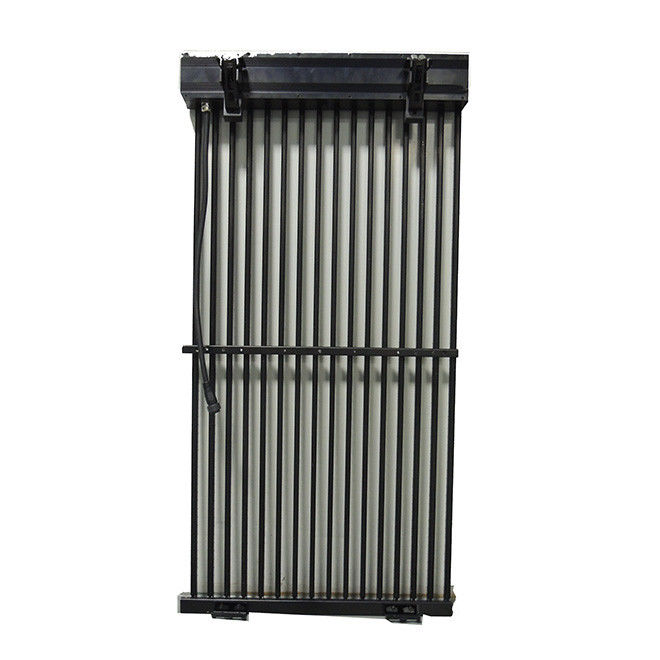

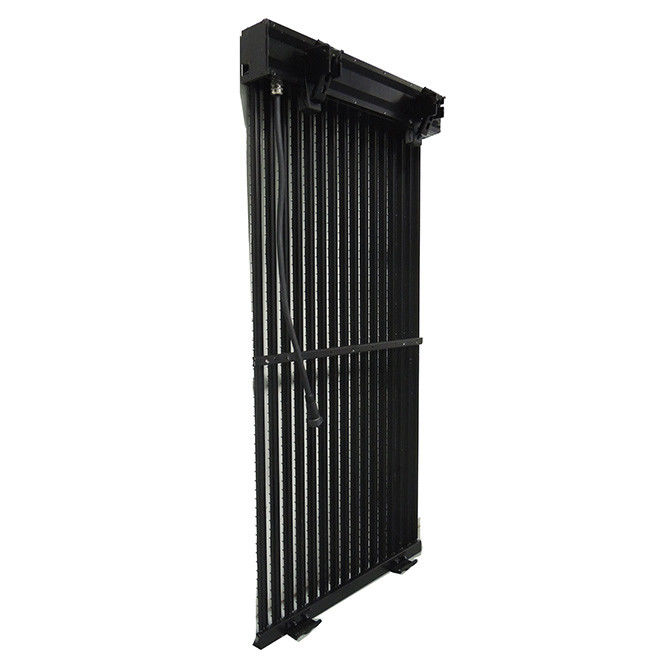

DIP Media LED Mesh Facade EV series
1. High transparency effect: The distance between the dots of the transparent led display screen is different, and the light transmittance can be between 50-90%. The perspective effect makes the glass retain the function of the lighting perspective, and the LED lamp can hardly be seen from a distance. The lighting of the glass curtain wall is not affected.
2. Small footprint and light weight: The thickness of the main body of the screen is only 10mm thick. After the LED transparent screen is installed, it takes almost no space and does not hinder other facilities or structures near the glass curtain wall. The LED transparent screen weighs only 14kg/m2, and the load requirements on the glass curtain wall change very little after installation on the glass curtain wall.
LED Mesh Facade Specification:
| Parameter | Specification | ||||||
| Product model | EV12 | EV15 | EV 20 | EV15-31 | EV25 | EV25-50 | EV 31 |
| Pixel configuration | 1R1G1B | ||||||
| LED type | DIP 346 | ||||||
| Pixel Pitch(mm) | 12.5 mm | 15.625 mm | 20 mm | 15.625/31.25 mm | 25 mm | 25-50 mm | 31.25 mm |
| Cabinet size(W×H×D) | L500×H1000mm | L500×H1000mm | L520×H1000mm | L500×H1000mm | L500×H1000mm | L500×H1000mm | L500×H1000mm |
| Cabinet resolution(W×H) | 40×80 | 32 × 64 | 26 ×50 | 16×64 | 20×40 | 10×40 | 16×32 |
| Pixel density | 6400 dots/㎡ | 4096 dots/㎡ | 2500 dots/㎡ | 2048 dots/㎡ | 1600 dots/㎡ | 800 dots/㎡ | 2048 dots/㎡ |
| Cabinets position | Vertically | Horizont/Vertically | Horizont/Vertically | Vertically | Vertically | Vertically | Vertically |
| Transparency level | 20% | 30% | 36% | 58% | 58% | 75% | 65% |
| Brightness | ≥4500nit | ≥7500nit | ≥7000nit | ≥6500nit | ≥6000nit | ≥6000nit | ≥6000nit |
| Weight | 25 KG/㎡ | 21 KG/㎡ | 19 KG/㎡ | 16 KG/㎡ | 18 KG/㎡ | 18 KG/㎡ | 18 KG/㎡ |
| Maximun power consumption | 480W/㎡ | 400W/㎡ | 375 W/㎡ | 480W/㎡ | 480W/㎡ | 480W/㎡ | 480W/㎡ |
| Average power consumption | 160W/㎡ | 130W/㎡ | 125W/㎡ | 160W/㎡ | 160W/㎡ | 160W/㎡ | 160W/㎡ |
| Viewing Angle | H100°/V60° | ||||||
| Waterproof | IP67 | ||||||
| Cabinets width | 113mm | ||||||
| Width after install | 150mm | ||||||
| Wind resistancy level | 12 | ||||||
| Fire safety | 10S/cabinet | ||||||
| Service method | Front & rear | ||||||
| Scanning | Static | ||||||
| White balance | 3200-9300K | ||||||
| Frame-changing frequency | 60Hz | ||||||
| Working temperature | -40℃- 60℃ | ||||||
| Storage temperature | -55℃120℃ | ||||||
| Life time | ≥100,000 hours | ||||||
| Input voltage(V) | AC110-220V | ||||||
| Grey scale | 16bit | ||||||

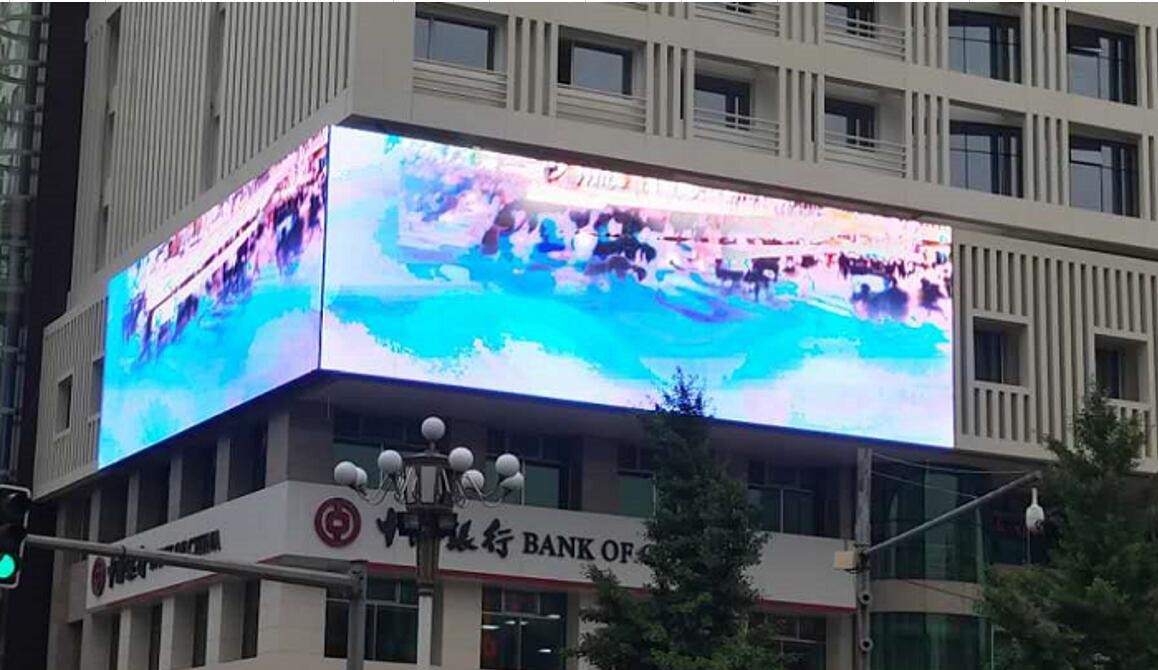

Application scopes
widely applied to the outdoor advertisement, stage shows, advertising screes, concerts, stadium display screen and so on.
Product Description & Features & advantages:
1. Our service:
2. Brief introduction:
3. Main application:
