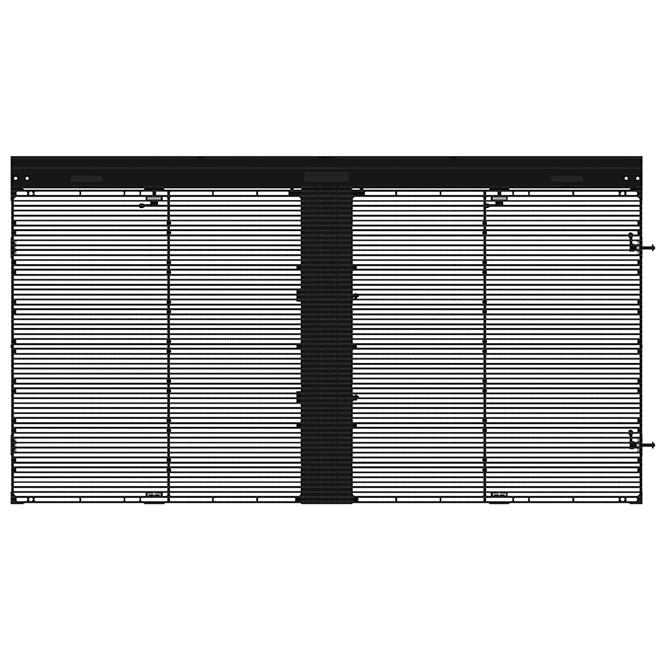

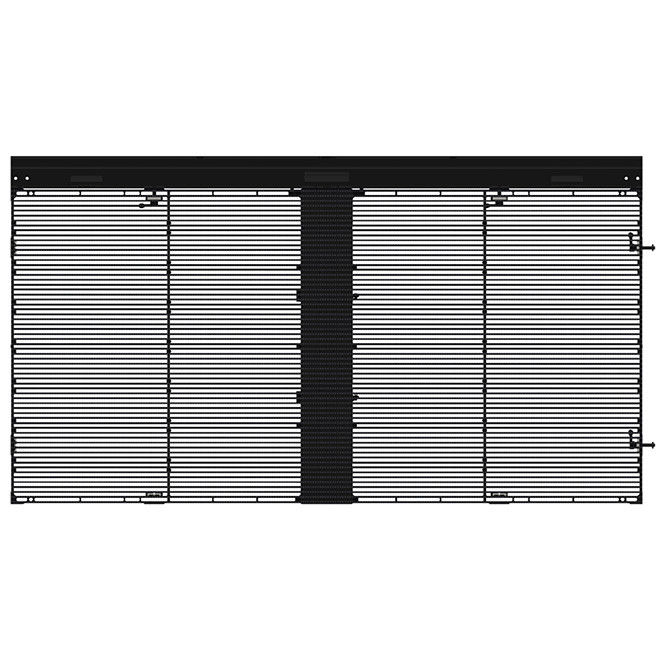

Transparent Glass Led Curtain Compact Light Thin Design Bendable

Product Details:
Place of Origin: China
Brand Name: AHL
Certification: CE ROHS
Model Number: P 7.8 indoor&outdoor
Payment & Shipping Terms:
Minimum Order Quantity: 1 Square Meter
Price: Negotiable
Packaging Details: Wooden box or Flight case
Delivery Time: 20-25 day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5,000 square meters per month

Detail Information

Pixel Configuration: 1R1G1B LED Type: SMD1921
Cabinets Position: Vertically/Horizont Waterproof: IP43
High Light:

led backdrop screen

,

led curtain wall

Product Description

Glass Led Wall



1. High brightness, the video is still clearly visible even when the sun shines directly on the screen surface within the visible distance;
2. Customized display effect and resolution design;

3. Mapping point-to-point control of playback system and display surface;

4. RGB basic colors have 16-bit color changing ability, can combine 281 trillion colors;

5. DVI interface supports digital information input, Scalable to multi-function video interface display system: CV, YPbPr, HD-SDI, HDMI, VGA, S-terminal, etc.;

6. full-path Gigabit fiber/network transmission and 128-bit signal processing system;

7. low gray level and high performance capability Rich program level, synchronous display with computer;

8. immediately playing content for instant editing and instant display;

9. Software and hardware system supports playback layout adjustment, play schedule arrangement, play record statistics, etc.





 Specification:



Parameter Specification
Type P3.9/7.8 indoor&outdoor P 7.8 indoor&outdoor P 10 indoor&outdoor P15.25 indoor&outdoor
Product model P3.9/7.8 P 7.8 P 10 P 15.25
Pitch(mm) From left to right3.9mm, From top to bottom 7.8mm 7.8mm 10.4 mm 15.25 mm
Pixel configuration 1R1G1B
LED Type SMD 2121/1921
Brightness 1200cd/m²/5500 cd/m²
Brightness control Manual/Automatic adjustment
Color temperature 6300-9000K
Viewing Angle 140/120 °
Pixel density 32768 pixel/m² 16395 pixel/m² 9246 pixel/m² 6400 pixel/m²
Cabinet resolution(W×H) 256pixel×64pixel 128 pixel×64 pixel; 128 pixel×128 pixel 96 pixel×48 pixel; 96 pixel×96 pixel 80 pixel×40 pixel; 80 pixel×80 pixel
Cabinet size(W×H×D) 1000×500×72; 1000×1000×100
Weight/cabinet(kg) 6 kg/15 kg panel
Cabinet meterial Aluminum
Cabinet color White/Silver/ Black
Waterproof Indoor IP 31, Outdoor IP 43
Operate temperature/ humidity -20℃~+60℃/10%~95%
Storage temperature/ humidity -40℃~+85℃/10%~95%
Color processing ≥16 bits
Gray level 65536 levels per color
Color 16.7M
Brightness uniformity 97%/±0.003
Chrominance uniformity (x,y)±0.003
Transparence 55% 66% 82% 85%
Frame-changing frequency 50/60Hz
Refresh rate ≥1920Hz
Power voltage(V) AC100-240V
Max.Power (W/㎡) 560 W/m² 500 W/m²
Average Power (W/㎡) 185 W/m² 150 W/m²
Life time 100000 hours
Scanning 1/16 scan
Drive method Constant current drive
Installation Fix/Hang
Maintenance mode Front maintenance / Back maintenance







Application scopes

widely applied to the outdoor advertisement, stage shows, advertising screes, concerts, stadium display screen and so on.





Product Description & Features & advantages:

1. Our service:

  • Reply immediately.
  • Quickly quote within 12 hours.
  • Best solution offered according to your needs
  • Big support from our company and responsible sales for after-sale service.
  • Our competitors say: "We won’t be beaten on price.".We would rather say: "We will not be beaten on quality"

2. Brief introduction:

  • High Portability with strong water and wind resistance.
  • High stability of both screen and image performance, with Integrated light bar structure..
  • High protection level: IP65.
  • High: Brightness keeps continuously work for 96 h even in a harsh place.
  • Font and rear maintenance.


3. Main application:

  • Outdooroversize building facade, glass LED video wall, transparent LED curtain facade.
  • Fixed installation.
