China LED Mesh Facade manufacturer

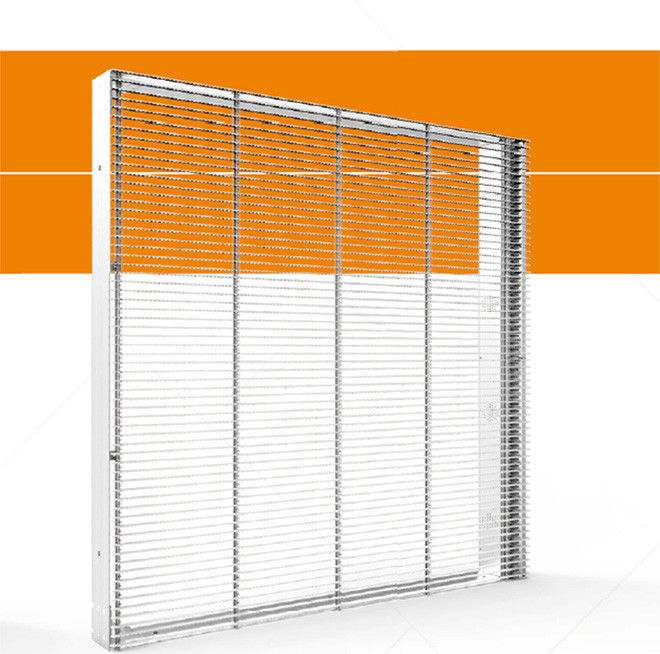

Transparent Led Curtain Flam Retardant Curved High Definition Led Media Facade

Product Details:
Place of Origin: China
Brand Name: AHL
Certification: CE ROHS
Model Number: P3.9/7.8 indoor&outdoor
Payment & Shipping Terms:
Minimum Order Quantity: 1 Square Meter
Price: Negotiable
Packaging Details: Wooden box or Flight case
Delivery Time: 20-25 day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5,000 square meters per month

Detail Information

Pixel Configuration: 1R1G1B LED Type: SMD 2121/1921
Cabinets Position: Vertically/Horizont Waterproof: IP67
High Light:

indoor fixed led display

,

indoor full color led display

Product Description

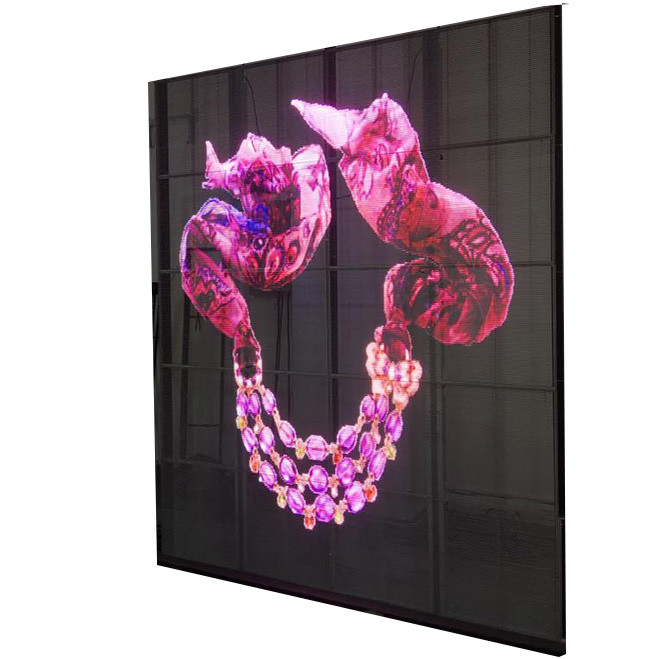

Glass Wall Display





Parameter Specification
Type P3.9/7.8 indoor&outdoor P 7.8 indoor&outdoor P 10 indoor&outdoor P15.25 indoor&outdoor
Product model P3.9/7.8 P 7.8 P 10 P 15.25
Pitch(mm) From left to right3.9mm, From top to bottom 7.8mm 7.8mm 10.4 mm 15.25 mm
Pixel configuration 1R1G1B
LED Type SMD 2121/1921
Brightness 1200cd/m²/5500 cd/m²
Brightness control Manual/Automatic adjustment
Color temperature 6300-9000K
Viewing Angle 140/120 °
Pixel density 32768 pixel/m² 16395 pixel/m² 9246 pixel/m² 6400 pixel/m²
Cabinet resolution(W×H) 256pixel×64pixel 128 pixel×64 pixel; 128 pixel×128 pixel 96 pixel×48 pixel; 96 pixel×96 pixel 80 pixel×40 pixel; 80 pixel×80 pixel
Cabinet size(W×H×D) 1000×500×72; 1000×1000×100
Weight/cabinet(kg) 6 kg/15 kg panel
Cabinet meterial Aluminum
Cabinet color White/Silver/ Black
Waterproof Indoor IP 31, Outdoor IP 43
Operate temperature/ humidity -20℃~+60℃/10%~95%
Storage temperature/ humidity -40℃~+85℃/10%~95%
Color processing ≥16 bits
Gray level 65536 levels per color
Color 16.7M
Brightness uniformity 97%/±0.003
Chrominance uniformity (x,y)±0.003
Transparence 55% 66% 82% 85%
Frame-changing frequency 50/60Hz
Refresh rate ≥1920Hz
Power voltage(V) AC100-240V
Max.Power (W/㎡) 560 W/m² 500 W/m²
Average Power (W/㎡) 185 W/m² 150 W/m²
Life time 100000 hours
Scanning 1/16 scan
Drive method Constant current drive
Installation Fix/Hang
Maintenance mode Front maintenance / Back maintenance



Application scopes

widely applied to the outdoor advertisement, stage shows, advertising screes, concerts, stadium display screen and so on.





Product Description & Features & advantages:

1. Our service:

  • Reply immediately.
  • Quickly quote within 12 hours.
  • Best solution offered according to your needs
  • Big support from our company and responsible sales for after-sale service.
  • Our competitors say: "We won’t be beaten on price.".We would rather say: "We will not be beaten on quality"

2. Brief introduction:

  • High Portability with strong water and wind resistance.
  • High stability of both screen and image performance, with Integrated light bar structure..
  • High: Brightness keeps continuously work for 96 h even in a harsh place.
  • Rear maintenance.


3. Main application:

  • Outdoor oversize building facade, glass LED video wall, transparent LED curtain facade.
  • Fixed installation.
