Mesh LED Media Facade Natural Ventilation Homogeneous Structure

Product Details:
Place of Origin: China
Brand Name: AHL
Certification: CE ROHS
Model Number: LV25x31
Payment & Shipping Terms:
Minimum Order Quantity: 1 Square Meter
Price: Negotiable
Packaging Details: Wooden box or Flight case
Delivery Time: 20-25 day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5,000 square meters per month

Detail Information

Pixel Configuration: 1R1G1B LED Type: DIP 346
Cabinets Position: Vertically/Horizont Waterproof: IP67
High Light:

media mesh facade


media facade lighting

Product Description

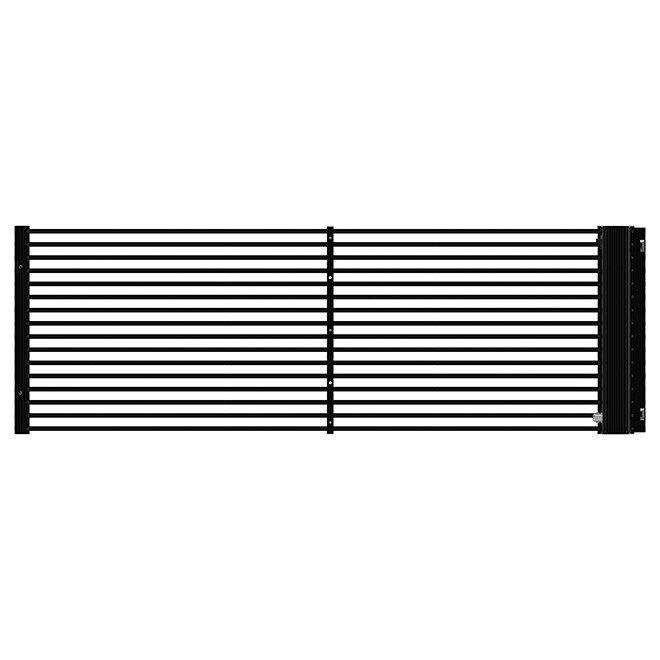

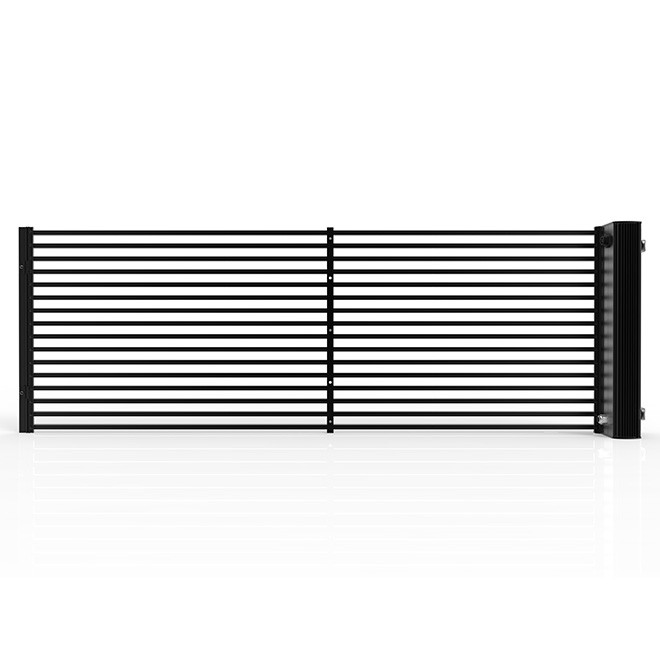

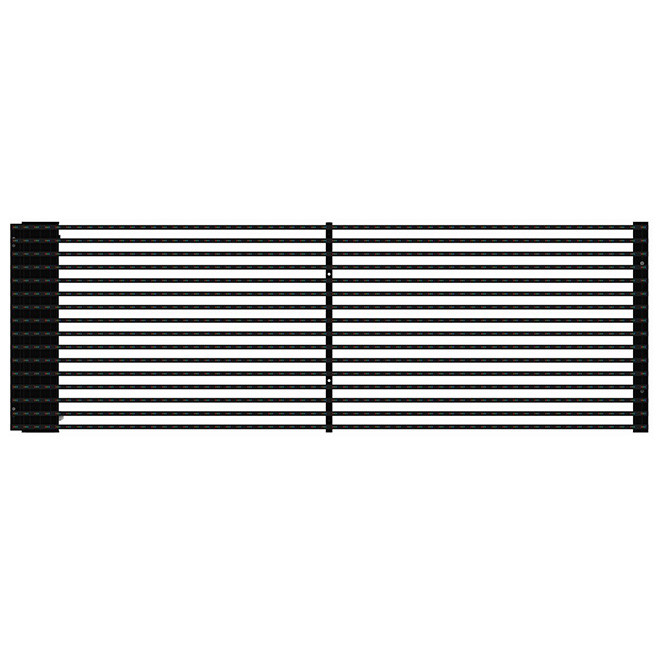

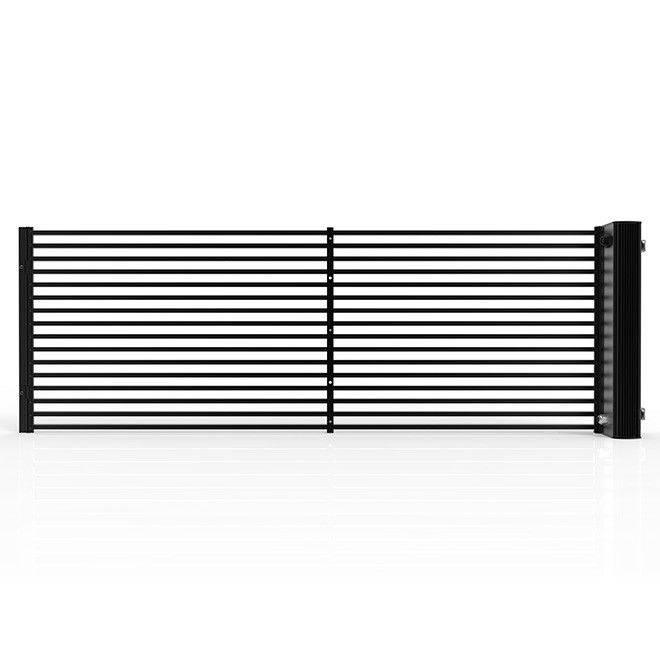

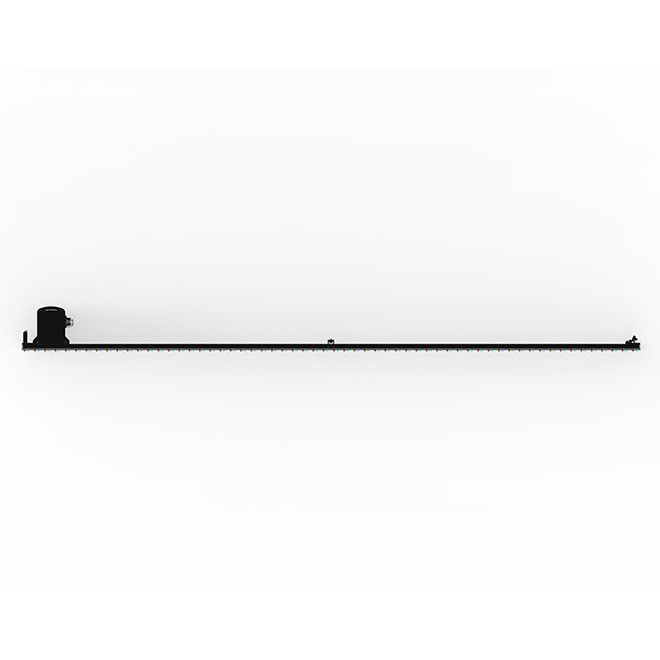

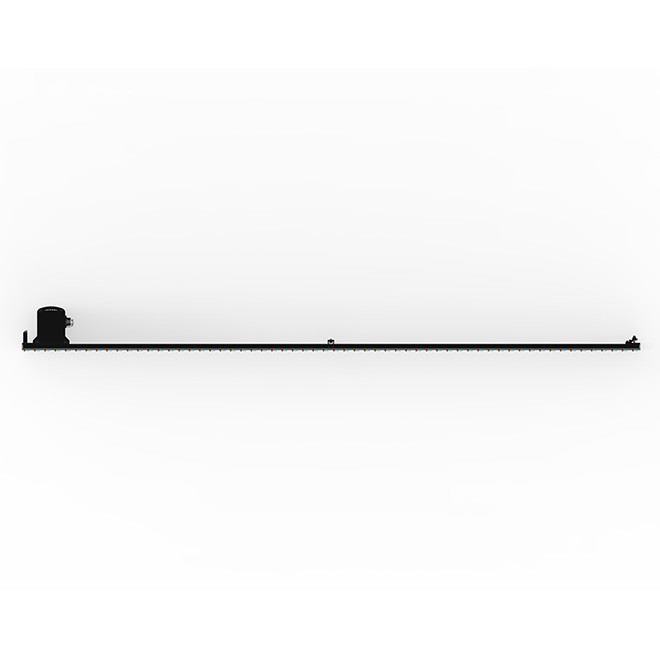

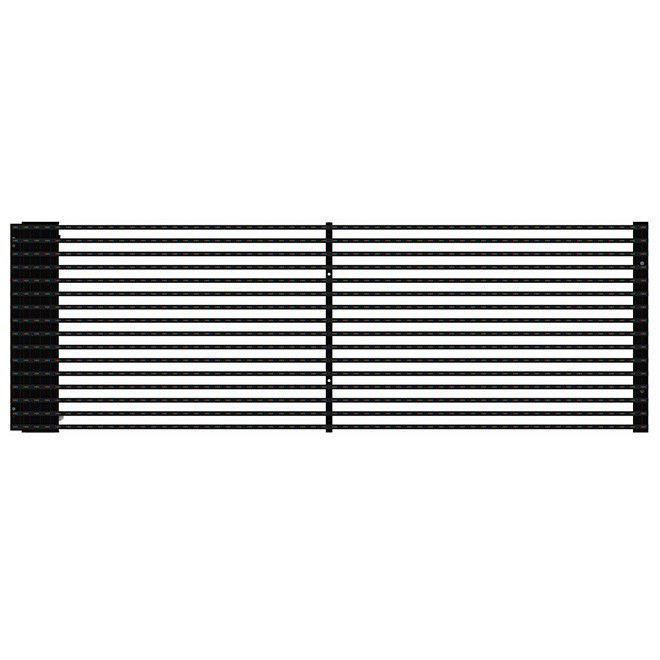

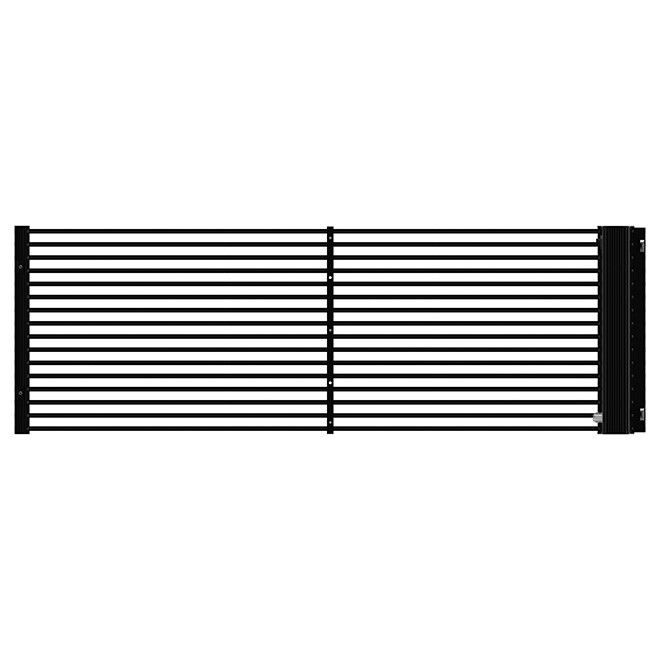

LED Media Facade


LED mesh screen delivers superb visual effects and excellent contrast ratio across its entire length of 1000 mm and height of 1092 mm. The scalable mesh system can be adapted to the geometry of any facade with no constraints on size. With a typical pixel pitch of 50mm, the mesh screen strikes an optimal balance between transparency and display resolution. The LED mesh screen incorporate 768 SMD5050 RGB LED modules with each having a built-in control IC that provides dynamic integration of power, communication, and control. The control IC has shift registers with three 8-bit PWM controllers to modulate and control the brightness/color of each LED channel. The ability to display 24 bits per LED node allows a full spectrum of saturated colors to be produced. These independently addressable LED nodes are connected to multiple strands which are daisy chained by jumpers. The mesh is controlled via DMX512 and e:pix (DVI-capable) protocols. With Ethernet connections and computer management, larger installations can be easily managed.


LED Mesh Facade Specification:

Product modelLV 25-31LV 25-50LV 31-50
Pixel configuration1R1G1B
LED typeDIP 346
Pixel Pitch(mm)25mm/31.25mm25mm/50mm31.25mm/50mm
Cabinet size(W×H×D)L500×H1500mm
Cabinet resolution(W×H)16×6010×6010×48
Pixel density1280dots/㎡800dots/㎡640 dots/㎡
Cabinets positionVertically/Horizont
Transparency level69%80%80%
Weight13KG/㎡10KG/㎡10 KG/㎡
Maximum power consumption330W/㎡280W/㎡200W/㎡
Average power consumption110W/㎡95W/㎡70W/㎡
Viewing AngleH100°/V60°
Cabinets width113mm
Width after install150mm
Wind resistance level12
Fire safety10S/cabinet
Service methodFront & rear
White balance3200-9300K
Frame-changing frequency60Hz
Working temperature-40℃- 60℃
Storage temperature-55℃120℃
Lifetime≥100,000 hours
Input voltage(V)AC110-220V


Application scopes

widely applied to the outdoor advertisement, stage shows, advertising screes, concerts, stadium display screen and so on.



Product Description & Features & advantages:
1. Our service:

  • Reply immediately.
  • Quickly quote within 12 hours.
  • Best solution offered according to your needs
  • Big support from our company and responsible sales for after-sale service.
  • Our competitors say: "We won’t be beaten on price.".We would rather say: "We will not be beaten on quality"

2. Brief introduction:

  • High Portability with strong water and wind resistance.
  • High stability of both screen and image performance, with Integrated light bar structure..
  • High protection level: IP65.
  • High: Brightness keeps continuously work for 96 h even in a harsh place.
  • Font and rear maintenance.

3. Main application:

  • Outdooroversize building facade, glass LED video wall, transparent LED curtain facade.
  • Fixed installation.
