China LED Mesh Facade manufacturer

Noiseless Pixel Matrix Screen Aluminum Structure Silent Cabinet Power Supply

Product Details:
Place of Origin: China
Brand Name: AHL
Certification: CE ROHS
Model Number: RT Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Square Meter
Price: Negotiable
Packaging Details: Wooden box or Flight case
Delivery Time: 20-25 day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5,000 square meters per month

Detail Information

Pixel Configuration: 1R1G1B LED Type: DIP 346
Cabinets Position: Vertically/Horizont Waterproof: IP65
High Light:

led pixel screen


led pixel pitch

Product Description

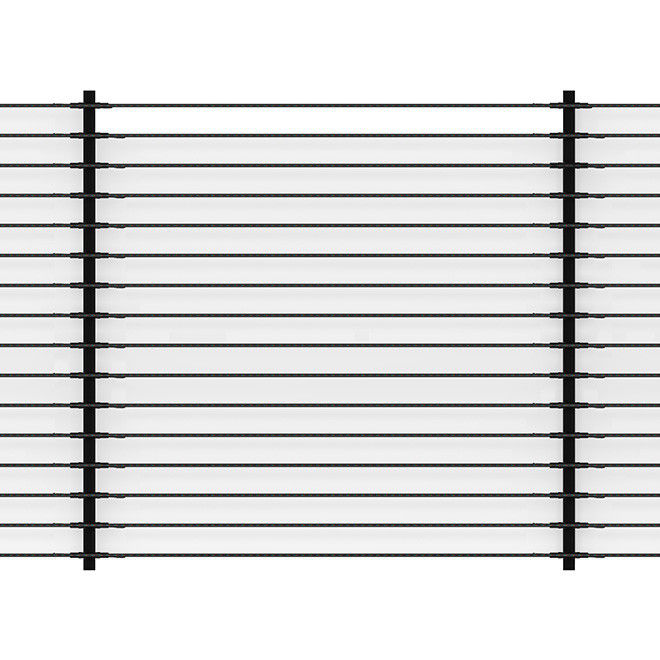

LED Media Facade

★ Light weight and slim design;
★ 100% front maintenance service available;
★ Cabinet with side quick lock & position pin;
★ High gray scale at even low brightness;
★ Ultra wide view angle and superior display effect


Parameter Specification
Product model RT 31.25 RT 50
Pixel configuration 1R1G1B 2R2G2B
LED type DIP 346 DIP 346
Pixel Pitch(mm) 31.25mm 25mm/50mm
Cabinet size(W×H×D) L1000×H2000mm L1000×H2000mm
Cabinet resolution(W×H) 32 20
Cabinets position Vertically/Horizont
Transparency level 69% 80%
Brightness ≥7200nit ≥6500nit
Weight 0.4 KG/m
Maximun power consumption 9 W/m
Viewing Angle H100°/V45°
Waterproof IP67
Strip width 14.5 mm 16 mm
Wind resistancy level 12
Fire safety 10S/cabinet
Service method Front & rear
White balance 3200-9300K
Frame-changing frequency 60Hz
Working temperature -40℃- 60℃
Storage temperature -55℃120℃
Life time ≥100,000 hours
Input voltage(V) 48V


Application scopes

widely applied to the outdoor advertisement, stage shows, advertising screes, concerts, stadium display screen and so on.



Product Description & Features & advantages:
1. Our service:

  • Reply immediately.
  • Quickly quote within 12 hours.
  • Best solution offered according to your needs
  • Big support from our company and responsible sales for after-sale service.
  • Our competitors say: "We won’t be beaten on price.".We would rather say: "We will not be beaten on quality"

2. Brief introduction:

  • High Portability with strong water and wind resistance.
  • High stability of both screen and image performance, with Integrated light bar structure..
  • High protection level: IP65.
  • High: Brightness keeps continuously work for 96 h even in a harsh place.
  • Font and rear maintenance.

3. Main application:

  • Outdooroversize building facade, glass LED video wall, transparent LED curtain facade.
  • Fixed installation.
