Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | AHL |
| Certification: | CE ROHS |
| Model Number: | LP Series |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Square Meter |
| Price: | Negotiable |
| Packaging Details: | Wooden box or Flight case |
| Delivery Time: | 20-25 day |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5,000 square meters per month |
|
Detail Information |
|||
| Pixel Configuration: | SMD 1010, SMD 1515, SMD2020 | Panel Size: | 960*480*60 Mm; 480*480*60 Mm |
|---|---|---|---|
| Panel Weight: | 12 Kg/unit & 6 Kg/unit | Maintainance Method: | Front Service |
| High Light: | digital display board,led video wall |
||
Product Description

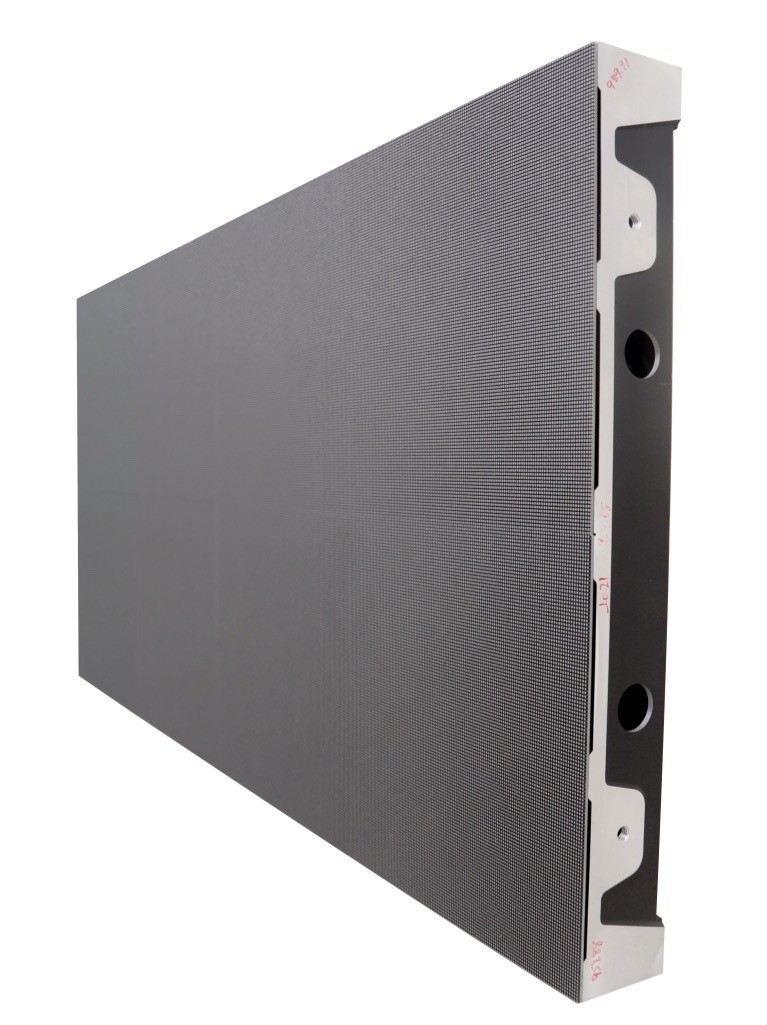

Advertising LED Display Screen
1) Front or rear maintenance option, realizing module, power supply and receiving card front or rear maintenance, saving your maintenance cost.
2) Adopt top high brightness with low power consumption LED lamp,energy saving≥30%, if adopt 28 kinds of main patent technique, entire energy saving ≥50%, environment protection.Pioneer in outdoor mature HD LED Display, all advanced specifications 2 years earlier than others, successful cases around the world.
3) Adopt dual service of black kingkong series among core techniques, free back service path for all kinds of installation surroundings.Broadcast level color scale, color temperature and brightness adjustable intelligentizedly, smooth color, high color ratio, nature pictures.
Specification:
| Parameter | Specification | |||
| Model Name | LP 1.29 | LP 1.57 | LP 1.875 | LP 2.5 |
| Pixel Pitch | 1.29 mm | 1.579 mm | 1.875 mm | 2.5 mm |
| Pixel Configuration | SMD 1010, SMD 1515, SMD2020 | |||
| Panel Size | 960*480*60 mm; 480*480*60 mm | |||
| Panel Resolution 960X480 mm | 745*372 | 612*305 | 512*256 | 384*192 |
| Panel Weight | 12 kg/unit & 6 kg/unit | |||
| Pixel per ㎡ | 600925 | 405695 | 284444 | 160000 |
| Brightness | 200-800nits | 200- 1000 nits | ||
| IP Rating (Front/Rear) | Back: IP44, Front: IP41 | |||
| Fresh Rate | 1920/ 3840 HZ - on request | |||
| Max / Avg Power Consumption per m2 | 650/235W/m² | 600/205W/m² | 600/205W/m² | 690/255W/m² |
| Color Processing | 16bit | |||
| Viewing Angle (H/V) | 160 /140 ° | |||
| Operating Temperature | -10~45° | |||
| Main Power Source | AC100-240V; 50/60Hz | |||
| Humidity | 10~90% RH | |||
| Life Time | 100000 Hours | |||
| Maintainance method | Front service | |||
| Certification | CE, EMC, Rohse - available on demand | |||
Product Description & Features & advantages:
