China LED Mesh Facade manufacturer

Controllable Led Modular Lighting 12bit Color Resolution Lighting Fixture

Product Details:
Place of Origin: China
Brand Name: AHL
Certification: CE ROHS
Model Number: C85
Payment & Shipping Terms:
Minimum Order Quantity: 1 Square Meter
Price: Negotiable
Packaging Details: Wooden box or Flight case
Delivery Time: 20-25 day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5,000 square meters per month

Detail Information

LED Source: 12pcs CREE C4SMG-R/G/BJF Color Range: 16.7 Million Additive RGB Colors
Color Resolution: 4096(12bit) Beam Angle: 90°
High Light:

rgb led module


led module replacement

Product Description

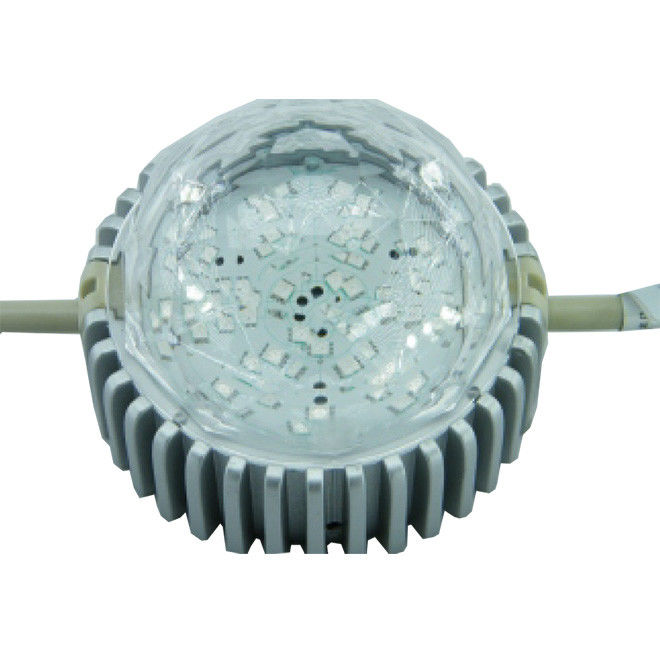

LED Pixel Module​


A High-Intensity, Easy-to-Integrate Façade Video Display Fixture

AHL Media Pixel is a full-color LED lighting fixture used for video screens, architectural decorations and stage events, but not for illuminating large spaces. The product integrates with architectural facades to display complex, dynamic and colorful images and videos on building surfaces.

Best used for installing on the exterior walls of buildings, AHL Media Pixel has a flexible strip design, allowing for the full customization of LED pixel sizes and pitch distances. Users can conveniently incorporate it into the shape of the building surface while presenting both 2D and 3D effects. The device’s strong design integrates well with steel, stone, and other building materials, and can withstand the impact of construction.

Unlike other fixtures, AHL Media Pixel is measured by the luminance it provides in a unit-size surface, rather than the lighting intensity, luminance or luminous flux. It has been designed according to common video playback and outdoor building materials standards and has 4,096 grayscale levels, a 1000Hz refresh rate and a less than 0.03% defect rate. Most importantly 5 years of warranty and its specifications and performance are much higher than those of regular decorative LED lamps.


AHL Media Pixel is a true green light source, with low power consumption that keeps both costs and environmental impacts to a minimum. This, along with its seamless integration into building facades, makes the fixture the best lighting source option for these types of applications.

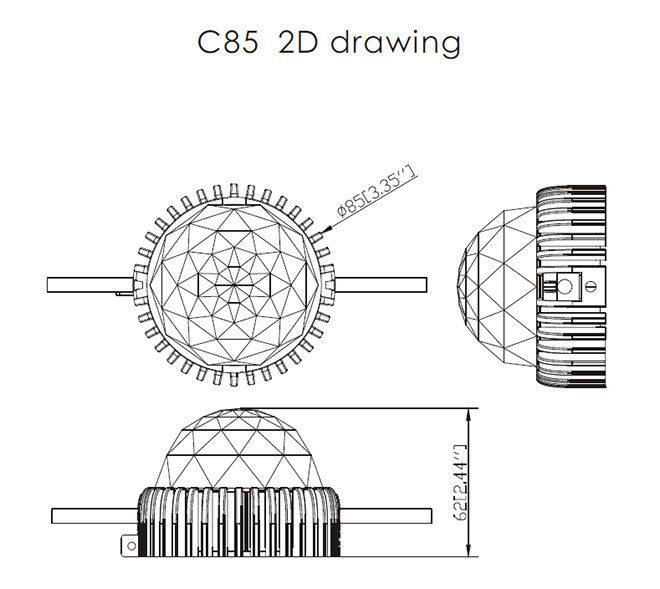

Model C85
LED Source 18pcs CREE SMD
Color Range 16.7 Million additive RGB colors
Color Resolution 256(8bit)
Beam Angle 120° (Clear Lens)
Pitch Min:200mm;Max:5000mm
Housing Black/White/Grey, Aluminum
Lens Clear Flat/Translucent Marquee, pc
Adjustment Options 4-pin Flexible cable (2*1.5mm+2*0.25mm )
Weight 240g (1 node);12000g (50 node strand)
Regulatory CE, RoHS,ETL
Environment Dry/Damp/Underwater, IP68
Operating Temperature –20°C to +50°C / –4°F to +122°F
Storage Temperature –20°C to +100°C / –4°F to +212°F
Lumen Maintenance 60,000+ hours (operation temperaute<50°C)
Operating Voltage 24V DC
Power Consumption 4.32W(Max);2.16(Av)
Connection Power with/without data, dc-dc long distance transit
Control DMX512(none pwm)-Parallel connection
Addressing Options Auto-Addressing
Data Source DMX


Power Supply:

  • Separate power supply. Suitable for big projects and permanent installations. 350W. Distance to first pixel is less thaan meters. Supports 1-2 strips, 200-4,000 pixels per strip.
  • Combine power supply with controller. Suitable for small projects and rental installations. Maximum distance: 100 meters. Uses PDS (power data supply) + PE (power engine). PDS model:200w-27v; 350w-36v; 600w-36v; 1000w-36v

Control System:

  1. Main Controller:DVI/HDMI input, resolution 1024x768. Supports both online and off-line control.
  2. Sub-controller (single port): With 200mm pitch, supports up to 2,048 pixels and up to 400-meter length; with 5000mm pitch, supports up to 100 pixels and up to 500-meter length.
  3. 3 ub-controller (8-port): With 200mm pitch, each port supports up to 512 pixels and up to 100-meter length; with 5000mm pitch, each port supports up to 100 pixels and up to 500-meter length.

Lightning-Protected Communication Boards:
Use for long-distance communication. Maximum distance from the sub-controller to the first LED pixel: 300 meters. Protect sub-controller and pixels from surge damages caused by lightning.
Installation Method
Steel Cable, Aluminum Section, and Panel
For more information about the installation method, please refer to the Installation Manual.


Product Description & Features & advantages:

1. Our service:

  • Reply immediately.
  • Quickly quote within 12 hours.
  • Best solution offered according to your needs
  • Big support from our company and responsible sales for after-sale service.
  • Our competitors say: "We won’t be beaten on price.".We would rather say: "We will not be beaten on quality"

2. Brief introduction:

  • High Portability with strong water and wind resistance.
  • High stability of both screen and image performance, with Integrated light bar structure..
  • High protection level: IP65.
  • High: Brightness keeps continuously work for 96 h even in a harsh place.
  • Font and rear maintenance.

3. Main application:

  • Outdooroversize building facade, glass LED video wall, transparent LED curtain facade.
  • Fixed installation.
