Home ProductsLED Media FacadeP 15-31 Modern LED Media Facade Homogeneous Appearance For Ourdoor Building EMC Class B

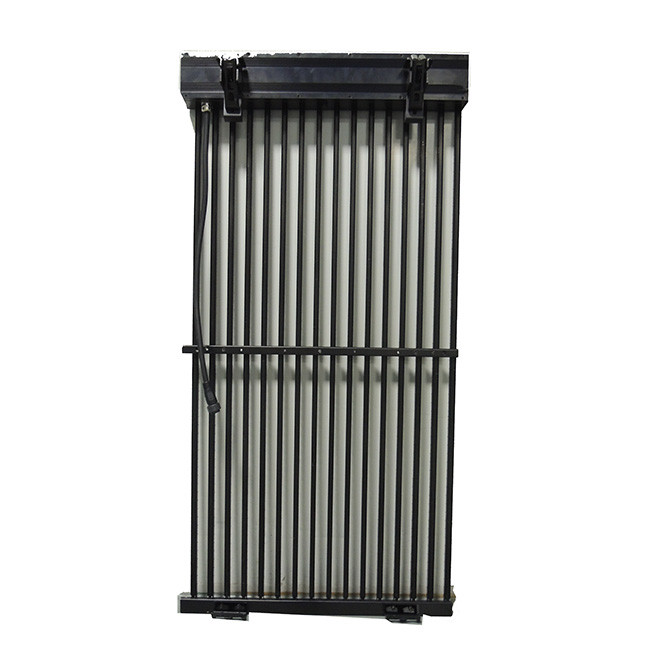

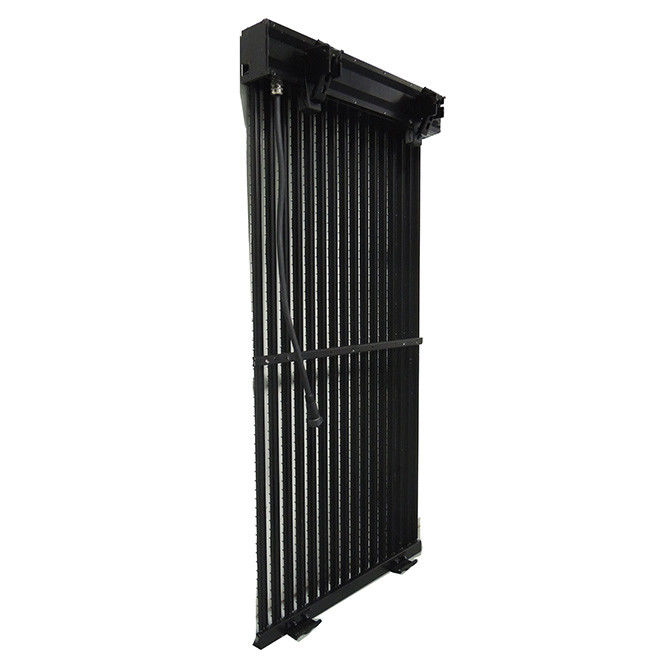

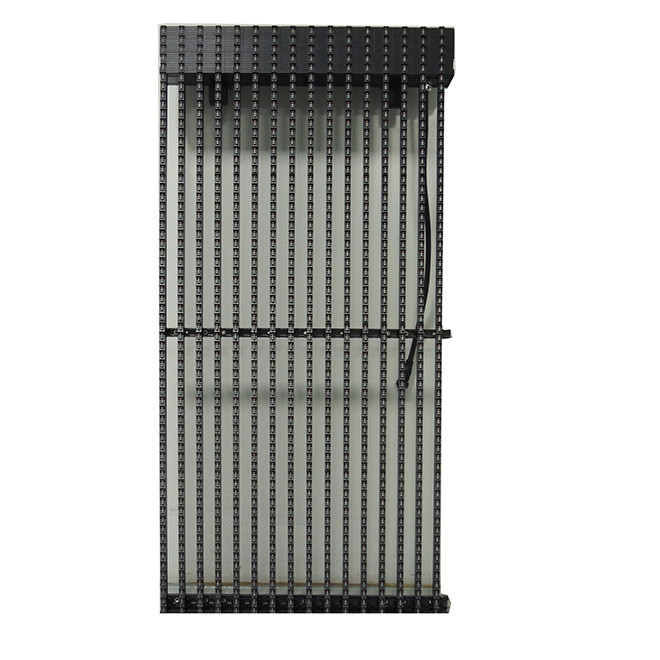

P 15-31 Modern LED Media Facade Homogeneous Appearance For Ourdoor Building EMC Class B
P 15-31 Modern LED Media Facade Homogeneous Appearance For Ourdoor Building EMC Class B P 15-31 Modern LED Media Facade Homogeneous Appearance For Ourdoor Building EMC Class B P 15-31 Modern LED Media Facade Homogeneous Appearance For Ourdoor Building EMC Class B P 15-31 Modern LED Media Facade Homogeneous Appearance For Ourdoor Building EMC Class B

P 15-31 Modern LED Media Facade Homogeneous Appearance For Ourdoor Building EMC Class B

Product Details:
Place of Origin: China
Brand Name: AHL
Certification: CE ROHS
Model Number: LED Mesh Facade
Payment & Shipping Terms:
Minimum Order Quantity: 1 Square Meter
Price: Negotiable
Packaging Details: Wooden box or Flight case
Delivery Time: 20-25 day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5,000 square meters per month
Contact Now

Detail Information
Pixel Configuration: 1R1G1B LED Type: DIP 346
Cabinets Position: Vertically/Horizont Waterproof: IP68
High Light:

transparent media facade

,

media facade lighting

Product Description

DIP Media LED Mesh Facade EV series



Flexible Design

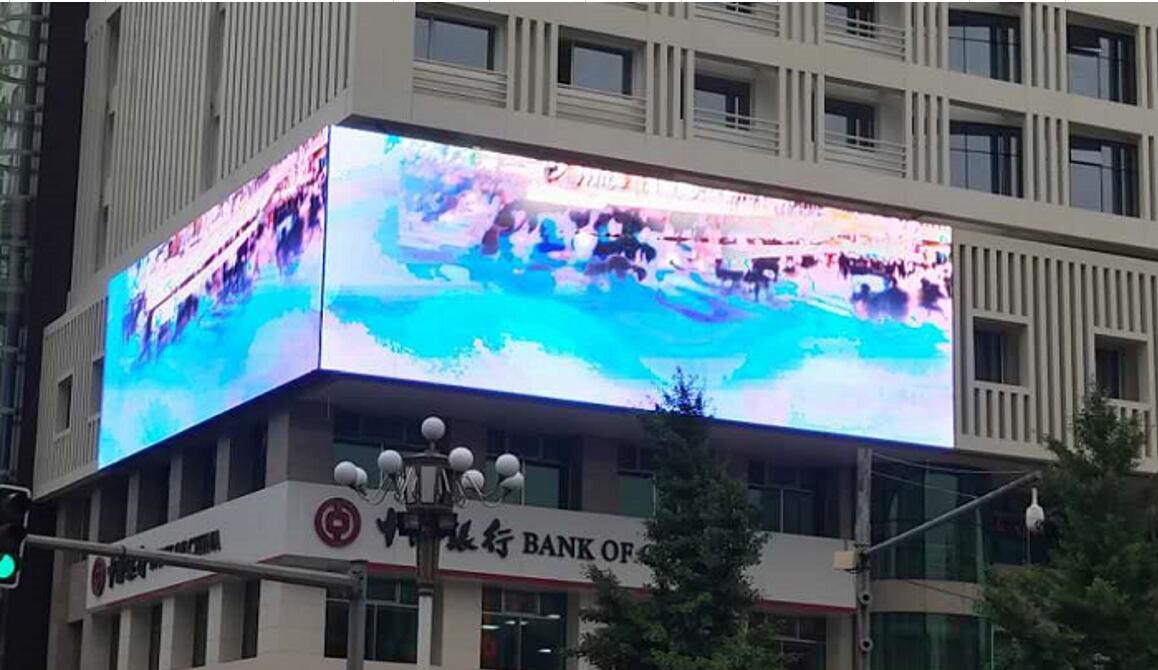

Any size and shape can be created with the LED Mesh system to meet project-specific requirements. Due to the flexible mounting system even the largest areas can easily be covered in any corner. LED Mesh is ideal for Building facades, walls, exhibition center, columns, ceilings…



Longevity, Energy and Cost Efficiency using modern LED Technology

High brightness along with low energy costs, longevity and low maintenance – these are the qualities offered by the latest LED technology. The continuous adjustment of brightness to the ambient conditions also emphasizes the energy efficiency of this system.



LED Mesh Facade Product features

LED Mesh Facade Specification:





Parameter Specification
Product model EV12 EV15 EV 20 EV15-31 EV25 EV25-50 EV 31
Pixel configuration 1R1G1B
LED type DIP 346
Pixel Pitch(mm) 12.5 mm 15.625 mm 20 mm 15.625/31.25 mm 25 mm 25-50 mm 31.25 mm
Cabinet size(W×H×D) L500×H1000mm L500×H1000mm L520×H1000mm L500×H1000mmx 96 mm/ L500x H 1200 mm by request L500×H1000mm L500×H1000mm L500×H1000mm
Cabinet resolution(W×H) 40×80 32 × 64 26 ×50 16×64 20×40 10×40 16×32
Pixel density 6400 dots/㎡ 4096 dots/㎡ 2500 dots/㎡ 2048 dots/㎡ 1600 dots/㎡ 800 dots/㎡ 2048 dots/㎡
Cabinets position Vertically Horizont/Vertically Horizont/Vertically Vertically Vertically Vertically Vertically
Transparency level 20% 30% 36% 55% 58% 75% 65%
Brightness ≥4500nit ≥7500nit ≥7000nit ≥7500nit ≥6000nit ≥6000nit ≥6000nit
Weight 25 KG/㎡ 21 KG/㎡ 19 KG/㎡ 16 KG/㎡ 18 KG/㎡ 18 KG/㎡ 18 KG/㎡
Maximun power consumption 370W/㎡ 380W/㎡ 300 W/㎡ 303W/㎡ 320W/㎡ 325W/㎡ 300W/㎡
Average power consumption 160W/㎡ 130W/㎡ 125W/㎡ 150W/㎡ 160W/㎡ 160W/㎡ 160W/㎡
Viewing Angle H120°/V120°
Waterproof IP67
Cabinets width 96 mm
Width after install 130 mm
Brightness control 255 colors
Colors control in the software
Service method Front & rear
Scanning Static
White balance 3200-9300K
Refresh Rate  1920 Hz/ 3840 HZ - on request
Working temperature -40℃- 70℃
Storage temperature -55℃120℃
Life time before brightness loss  50%  ≥100,000 hours
Input voltage(V) AC110-220V
Grey scale 14bit, 4 trl colors 1920 HZ  or 16 bit, 281 trl  3840 HZ - on request



Application scopes

widely applied to the outdoor advertisement, stage shows, advertising screes, concerts, stadium display screen and so on.





Product Description & Features & advantages:

1. Our service:

  • Reply immediately.
  • Quickly quote within 12 hours.
  • Best solution offered according to your needs
  • Big support from our company and responsible sales for after-sale service.
  • Our competitors say: "We won’t be beaten on price.".We would rather say: "We will not be beaten on quality"

2. Brief introduction:

  • High Portability with strong water and wind resistance.
  • High stability of both screen and image performance, with Integrated light bar structure..
  • High protection level: IP67
  • High: Brightness keeps continuously work for 96 h even in a harsh place.
  • Font and rear maintenance.




Параметры Спецификация
Артикул EV12 EV15 EV 20 EV15-31 EV25 EV25-50 EV 31
Конфигурация пикселя 1R1G1B
LED пикселя DIP 346
Шаг пикселя (mm) 12.5 mm 15.625 mm 20 mm 15.625/31.25 mm 25 mm 25-50 mm 31.25 mm
Размер кабинета(W×H×D) L500×H1000mm L500×H1000mm L520×H1000mm L500×H1000mmx 96 mm/ L500x H 1200 mm by request L500×H1000mm L500×H1000mm L500×H1000mm
Разрешение кабинета(W×H) 40×80 32 × 64 26 ×50 16×64 20×40 10×40 16×32
Плотность пикселя 6400 точек/㎡ 4096 точек/㎡ 2500 точек/㎡ 2048 точек/㎡ 1600 точек/㎡ 800 точек/㎡ 2048 точек/㎡
Позиция кабинетов Вертикально Горизон/Вертикально Горизон/Вертикально Горизон/Вертикально Горизон/Вертикально Горизон/Вертикально Горизон/Вертикально
уровень прозрачности 20% 30% 36% 55% 58% 75% 65%
Яркость ≥4500 нит ≥7500 нит ≥7000 нит ≥7500 нит ≥6000 нит ≥6000 нит ≥6000 нит
Вес 25 KG/㎡ 21 KG/㎡ 19 KG/㎡ 16 KG/㎡ 18 KG/㎡ 18 KG/㎡ 18 KG/㎡
Максимальное энергопотребление 370 Ватт/㎡ 380 Ватт/㎡ 300 Ватт/㎡ 303 Ватт/㎡ 320 Ватт/㎡ 325 Ватт/㎡ 300 Ватт/㎡
Среднее энергопотребление 160 Ватт/㎡ 130 Ватт/㎡ 125 Ватт/㎡ 150 Ватт/㎡ 160 Ватт/㎡ 160 Ватт/㎡ 160 Ватт/㎡
Угол обзора H120°/V120°
Уровень защиты IP67
Толщина кабинета 96 mm
Width after install 130 mm
Контроль яркости 255 цветов
Контроль цвета в программе
Метод обслуживания Фронт &  тыл
Метод скана Статичный
Баланс белого 3200-9300K
Рефреш уровень 1920 Hz/ 3840 HZ - по выбору
Рабочая температура -40℃- 70℃
Температура хранения -55℃120℃
Срок службы до потери 50% яркости ≥100,000 часов
Входное напряжение(Вольт) AC110-220V
Градация серого 14 Бит, 4 трлн цветов при 1920 гц ИЛИ 16 Бит,  281  трл цветов при 3840 Гц  - на выбор
