China LED Mesh Facade manufacturer

Exquisite LED Mesh Facade Clear Image Indoor Transparent LED Cost Efficiency

Product Details:
Place of Origin: China
Brand Name: AHL
Certification: CE ROHS
Model Number: LED Mesh Facade
Payment & Shipping Terms:
Minimum Order Quantity: 1 Square Meter
Price: Negotiable
Packaging Details: Wooden box or Flight case
Delivery Time: 20-25 day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5,000 square meters per month

Detail Information

Pixel Configuration: 1R1G1B LED Type: SMD
Cabinets Position: Vertically/Horizont Waterproof: IP43
High Light:

media mesh facade


media facade lighting

Product Description

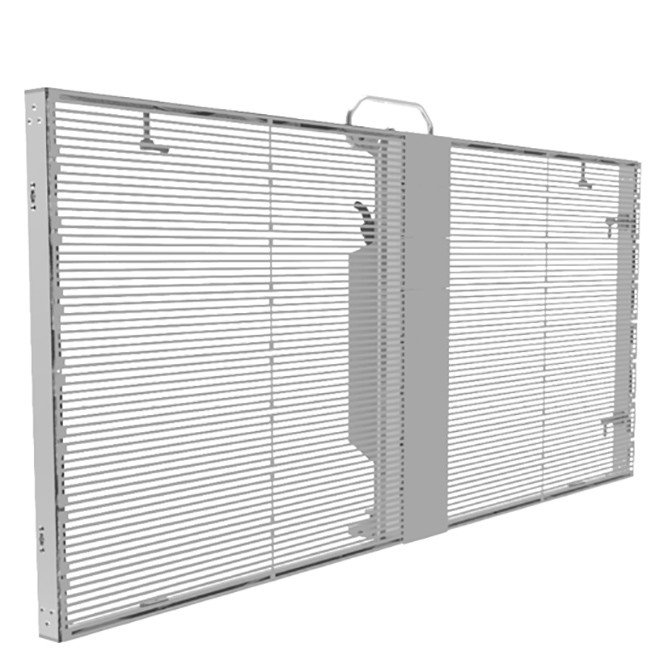

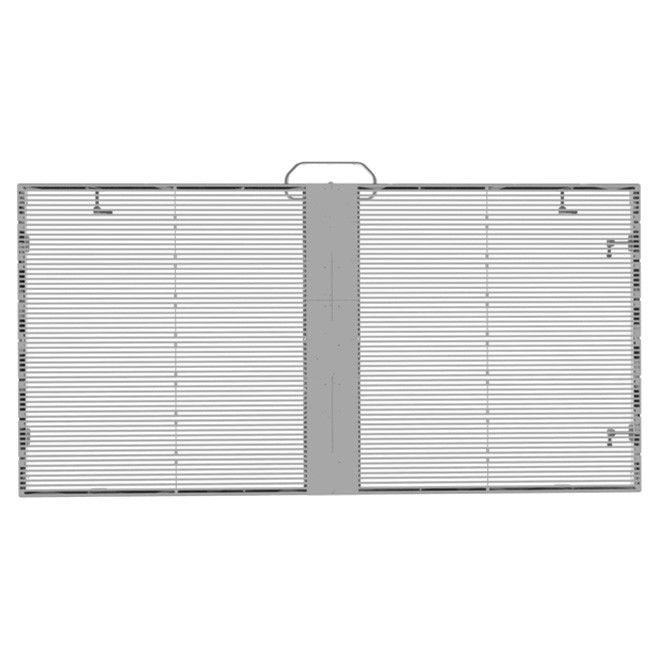

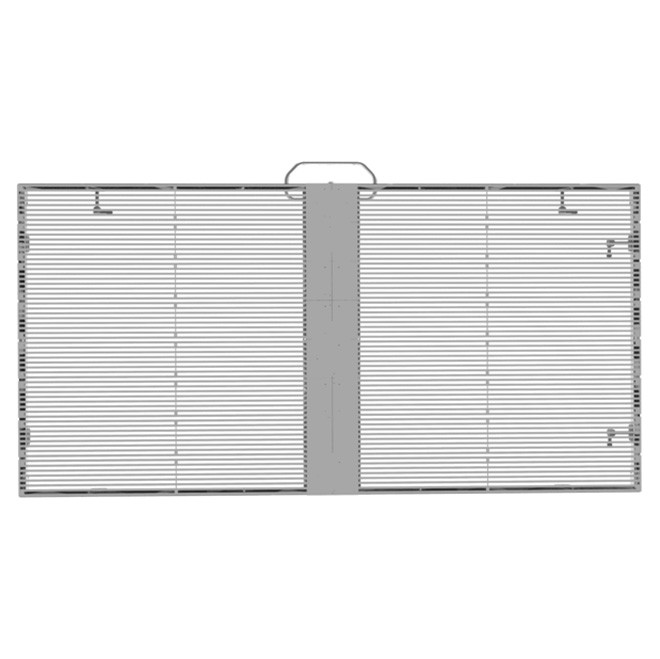

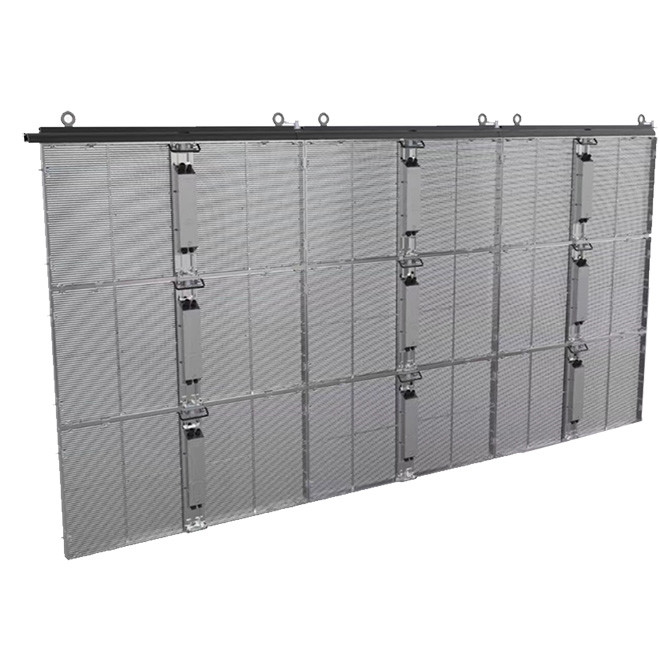

Transparent Indoor Led Videowall


Classical LED Mesh are a display on their own; LED strips are mounted onto plastic strips that are assembled using the same techniques as knitting, which allows an important flexibility and the creation of any shape. Metallic Mesh curtains are also made with the same technic, excepted for the material, and feature a thiner composition. It is metal fibers made of stainless steel that are mounted together with the knitting process. Then, LED strips can be mounted on it, from the back of the module which allow an homogeneous structure without visible wires. On/in buildings, LED Mesh curtain is made out of stainless steel which makes it light, resistant, and cheap. Both classical and curtain Mesh module are first built depending on the customer’s needs, then the LED strips are fixed on it, which allows only the LED light to go trough the panel and makes the LED strips invisible.


LED Mesh Facade Specification:

TypeP3.9/7.8 indoor&outdoorP 7.8 indoor&outdoorP 10 indoor&outdoorP15.25 indoor&outdoor
Product modelP3.9/7.8P 7.8P 10P 15.25
Pitch(mm)From left to right3.9mm, From top to bottom 7.8mm7.8mm10.4 mm15.25 mm
Pixel configuration1R1G1B
LED TypeSMD 2121/1921
Brightness1200cd/m²/5500 cd/m²
Brightness controlManual/Automatic adjustment
Color temperature6300-9000K
Viewing Angle140/120 °
Pixel density32768 pixel/m²16395 pixel/m²9246 pixel/m²6400 pixel/m²
Cabinet resolution(W×H)256pixel×64pixel128 pixel×64 pixel; 128 pixel×128 pixel96 pixel×48 pixel; 96 pixel×96 pixel80 pixel×40 pixel; 80 pixel×80 pixel
Cabinet size(W×H×D)1000×500×72; 1000×1000×100
Weight/cabinet(kg)6 kg/15 kg panel
Cabinet meterialAluminum
Cabinet colorWhite/Silver/ Black
WaterproofIndoor IP 31, Outdoor IP 43
Operate temperature/ humidity-20℃~+60℃/10%~95%
Storage temperature/ humidity-40℃~+85℃/10%~95%
Color processing≥16 bits
Gray level65536 levels per color
Brightness uniformity97%/±0.003
Chrominance uniformity(x,y)±0.003
Frame-changing frequency50/60Hz
Refresh rate≥1920Hz
Power voltage(V)AC100-240V
Max.Power (W/㎡)560 W/m²500 W/m²
Average Power (W/㎡)185 W/m²150 W/m²
Life time100000 hours
Scanning1/16 scan
Drive methodConstant current drive
Maintenance modeFront maintenance / Back maintenance


Application scopes

widely applied to the outdoor advertisement, stage shows, advertising screes, concerts, stadium display screen and so on.



Product Description & Features & advantages:
1. Our service:

  • Reply immediately.
  • Quickly quote within 12 hours.
  • Best solution offered according to your needs
  • Big support from our company and responsible sales for after-sale service.
  • Our competitors say: "We won’t be beaten on price.".We would rather say: "We will not be beaten on quality"

2. Brief introduction:

  • High Portability with strong water and wind resistance.
  • High stability of both screen and image performance, with Integrated light bar structure..
  • High protection level: IP65.
  • High: Brightness keeps continuously work for 96 h even in a harsh place.
  • Font and rear maintenance.

3. Main application:

  • Outdooroversize building facade, glass LED video wall, transparent LED curtain facade.
  • Fixed installation.
