Professional Indoor Led Display Screen , Small Pixel Pitch Full Color Led Display No Ghosting

Product Details:
Place of Origin: China
Brand Name: AHL
Certification: CE ROHS
Model Number: W Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Square Meter
Price: Negotiable
Packaging Details: Wooden box or Flight case
Delivery Time: 20-25 day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5,000 square meters per month

Detail Information

Pixel Configuration: SMD2020/2121/3528 Panel Size: 960*480*60 Mm; 480*480*60 Mm
Panel Weight: 12 Kg/unit & 6 Kg/unit Maintainance Method: Front / Back Service
High Light:

indoor led advertising screens

,

indoor fixed led display

Product Description



Advertising Indoor LED Display Screen

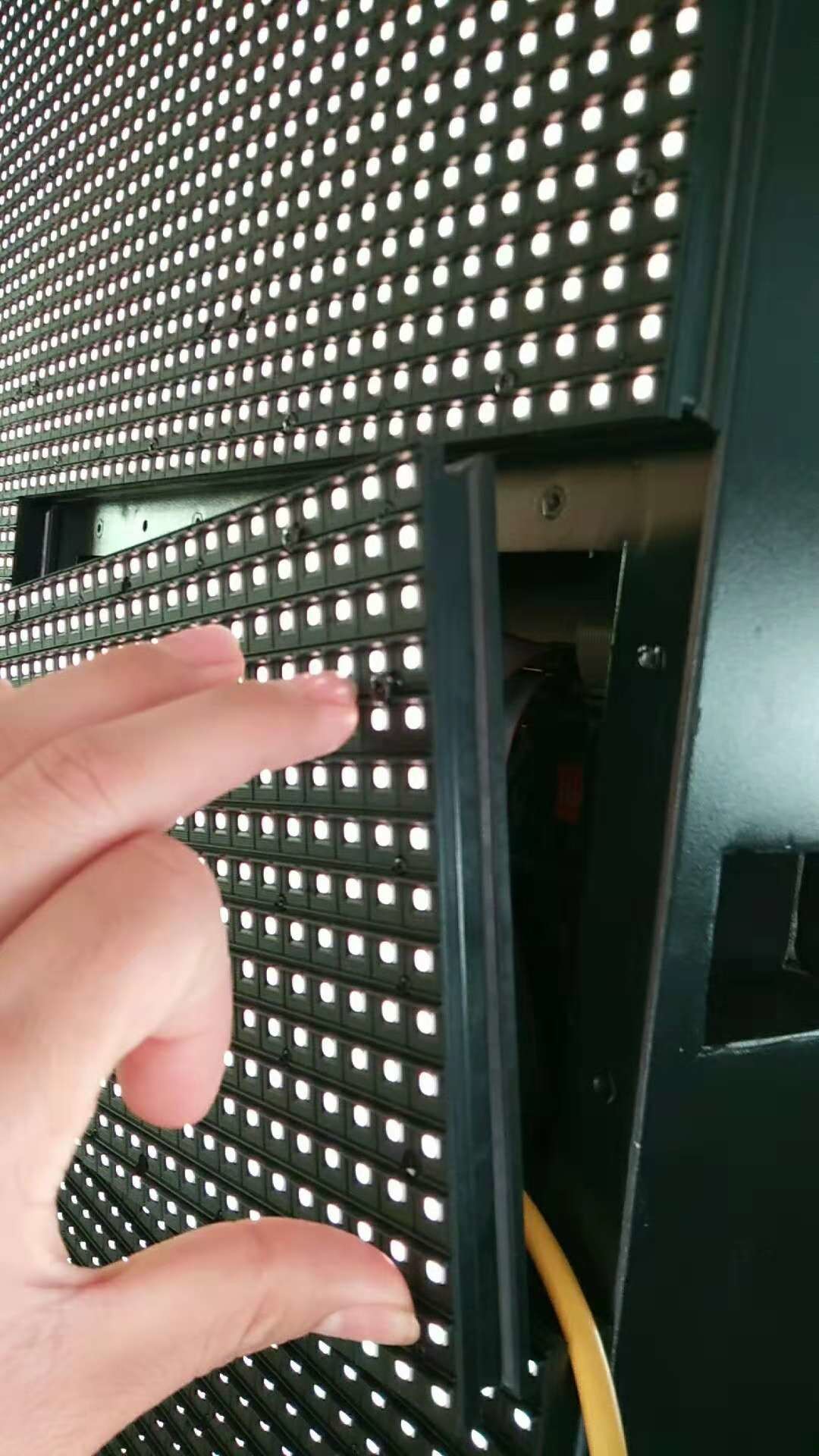

  • The installation of a cabinet on the steel frame, first install cabinets, then modules. Fully front service access.
  • Simple and easy maintainance.
  • The cabinet without back doors. that lighten the weight of steel cabinet.
  • Suitable for fixed installation of large videowalls.



 Specification:



Parameter Specification
Model Name W 2.5 W 3 W 4 W 5 W 6 W 8 W 10
Pixel Pitch 2.5 mm 3 mm 4 mm 5 mm 6 mm 8 mm 10 mm
Module (small unit) size 160X160 mm/ 320X160 mm/ 192X96 mm & 192X192 mm 128 *128 mm & 256*128 mm 160 *160 mm 192X96 mm & 192X192 mm 256X128 mm 320 X160 mm
Pixel Configuration SMD 2020 SMD 2020 SMD 2020 SMD 3528 SMD 3528 SMD 3528 SMD 3528
Panel Size (can be customized) 960*960*130 mm 960*960*130 mm 1024*1024*130 mm 960*960*130 mm 960*960*130 mm 1024*1024*130 mm 960*960*130 mm
White balance 6500 K
Panel Resolution 384*384 320*320 256*256 192*192 160*160 120*120 96*96
Panel Weight per m2 45 kg/m2
Cabinet Material Steel/Aluminum
Pixel per ㎡ 160000 111111 62500 40000 27778 15625 10000
Brightness 9500-1500 nits
IP Rating (Front/Rear) IP 30
Fresh Rate 1920/ 3840 Hz
Scan Mode 1/16 1/16 1/8 1/8 1/8 1/8 1/4
Max / Avg Power Consumption 500/250 W/m² 500/250 W/m² 440/160 W/m² 630/220 W/m² 610/220 W/m² 310/110 W/m² 400/150 W/m²
Color Processing 13- 16 bit
Viewing Angle (H/V) 140 /120 ° °
Operating Temperature -10~45°
Main Power Source AC100-240V; 50/60Hz
Humidity 10~90% RH
Life Time 100000 Hours
Service access Front with magnets/Rear - on demand
Certification CE, EMC, Rohse - available on demand





Application scopes

widely applied to the indoor advertisement, concert halls, stage shows, advertising screes, casino, night clubs, stadium display screen and so on.





Product Description & Features & advantages:

1. Our service:

  • Reply immediately.
  • Quickly quote within 12 hours.
  • Best solution offered according to your needs
  • Big support from our company and responsible sales for after-sale service.
  • Our competitors say: "We won’t be beaten on price.".We would rather say: "We will not be beaten on quality"

2. Brief introduction:

  • High Portability with strong water and wind resistance.
  • High stability of both screen and image performance, with Integrated light bar structure..
  • High protection level: IP65.
  • High: Brightness keeps continuously work for 96 h even in a harsh place.
  • Font and rear maintenance.


3. Main application:

  • Outdooroversize building facade, glass LED video wall, transparent LED curtain facade.
  • Fixed installation.
