China LED Mesh Facade manufacturer

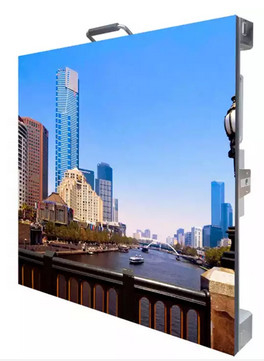

Noiseless LED Transparent Display Seamless Connection Easy Maintain Silent

Product Details:
Place of Origin: China
Brand Name: AHL
Certification: CE ROHS
Model Number: LED Transparent Display
Payment & Shipping Terms:
Minimum Order Quantity: 1 Square Meter
Price: Negotiable
Packaging Details: Wooden box or Flight case
Delivery Time: 20-25 day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5,000 square meters per month

Detail Information

Name: LED Transparent Display Pixel Configuration: 1R1G1B
LED Type: SMD Cabinets Position: Vertically
Waterproof: IP43 Feature: Noiseless
High Light:

Noiseless LED Transparent Display

,

1R1G1B LED Transparent Display

,

IP43 Seamless LED Display

Product Description

P 5/8 Indoor Transparent Display





Quick Detail:

1. Available models: PH10mm, PH8mm, PH6mm, PH5mm…
2. high waterproof level, super high brightness, high contrast ratio, high grey scale, high refresh rate, super vivid color, super wide view angle, super soft display, super even surface
3. Light weight and easy to install
4. Perfect uniformity and no mosaic.
5. Lifespan is up to 100,000 hours.
6. Hanging structure design with gapless connection, quickly installation and dismantling





LED Transparent Display Specification:



Type P5/8 indoor&outdoor LED transparent display
Product model 63 Inch
Pitch(mm) From left to right 5 mm, From top to bottom 8mm
Pixel configuration 1R1G1B
LED Type SMD 3 in 1
Brightness 1200cd/m²/5000 cd/m²
Brightness control Manual/Automatic adjustment
Color temperature 6300-9000K
Viewing Angle 175°
Pixel density 32768 pixel/m²
Cabinet resolution(W×H) 256pixel×64pixel
Cabinet size(W×H×D) W1016.6× H 1497× D50 mm
Weight/cabinet(kg) 21 kg/panel
Cabinet meterial Aluminum
Cabinet color Silver/Golden
Waterproof IP 43
Operate temperature/ humidity -20℃~+60℃/10%~95%
Storage temperature/ humidity -40℃~+85℃/10%~95%
Color processing ≥16 bits
Gray level 65536 levels per color
Color 16.7M
Brightness uniformity 97%/±0.003
Chrominance uniformity (x,y)±0.003
Transparence 65%
Frame-changing frequency 50/60Hz
Refresh rate ≥1920Hz
Power voltage(V) AC100-240V
Max.Power (W/㎡) 1000 W/set
Average Power (W/㎡) 320 W/set
Life time 100000 hours
Installation Fix/Hang
Maintenance mode Front maintenance / Back maintenance





Application scopes

Highly used for airport ,station,shopping center, car shows, fashion shows, concerts, ceremonies and other outdoor places.





Product Description & Features & advantages:

1. Our service:

  • Reply immediately.
  • Quickly quote within 12 hours.
  • Best solution offered according to your needs
  • Big support from our company and responsible sales for after-sale service.
  • Our competitors say: "We won’t be beaten on price.".We would rather say: "We will not be beaten on quality"

2. Brief introduction:

  • High stability of both screen and image performance, with Integrated light bar structure..
  • High protection level: IP43.
  • High: Brightness keeps continuously work for 96 h even in a harsh place.
  • Hanging installation.


3. Main application:

  • Indoor oversize building facade, glass LED video wall, transparent LED curtain facade.
  • Fixed installation.
